TYPE  TC - Instrument  Cable

PVC with Nylon Insulation, Multiple Pairs, Precabled Pair Shielded and Overall Shielded, PVC Jacket,600V



Application: Listed for use in cable trays, Rated 600V,90℃.

Ratings:

UL1277-Type TC

UL66-Type TFN

Sunlight  resistant

FT4

Construction: 18-16AWG stranded bare copper .PVC with nylon insulation , color coded(pair identified with numeric print), precabled pair and overall aluminum/polyester foil tape plus tinned copper drain,black PVC jacket(Flame-retardant ,sunlight resistant,gas/vapor- tight), A rip cord is inserted under the jacket for ease of stripping,surface printed.

Information  on  the  cable:  AWG size, type letters, temperature, rated voltage, the name of the manufacturer, UL file number, characteristic, FEET



—— —— —— —— —— —— —— —— —— —— —— —— —— —— —— ——

TYPE  TC - Power  and  Control  Cable

PVC/Nylon  Insulation  with  Overall  PVC  Jacket  600V, 90℃ Dry, 75℃ Wet



Scope:

This specification covers multiconductor cables having TFN or THHN/THWN (PVC/Nylon) conductors with an overall flame-retardant ,sunlight resistant,gas/vapor-tight polyvinyl chloride (PVC) jacket, conforming to Standard 1277 of Underwriters Laboratories, Inc. They meet the requirements of the FT4 flame test. Rated 600 volts, 90°C dry ,75°C wet. UL file No. E305939.

Conductors:  Bare, soft  annealed copper.

Sizes 18 and 16 AWG(TFN):  Bunch stranded. Size 18(7/0.39mm)and 16(7/0.49mm)per UL66.

Sizes 14AWG-250kcmil(THHN/THWN):  Concentric stranded, Class B per ASTM B8 and UL83.

Insulation:  Flame retardant PVC.Thickness:18 and 16AWG per UL66,14AWG-250kcmil  per UL83.

Color coding:

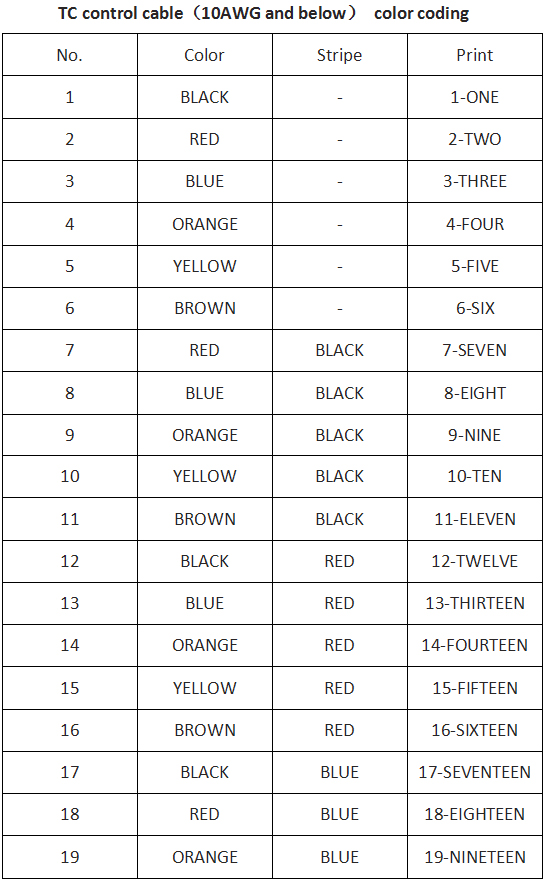

(1)  TC control cable(10AWG and below):Identified by color and code,see Table 1.

(2)  TC power cable(8AWG  and  up): Identified by color and code, see Table 2.

Conductor Jacket: Nylon.Thickness: 18 and 16AWG per UL66,14AWG-250kcmil  per UL83.

Cabling: Three or more conductors are assembled without fillers.A rip cord is inserted under the jacket for ease of stripping.

Overall  Jacket :  Flame-retardant ,sunlight resistant ,gas/vapor-tight PVC jacket .Thickness: per UL1277 .

Information  on  the  cable:  AWG or kcmil size, type letters, temperature, rated voltage, the name of the manufacturer, UL file number, characteristic, FEET.

Table1

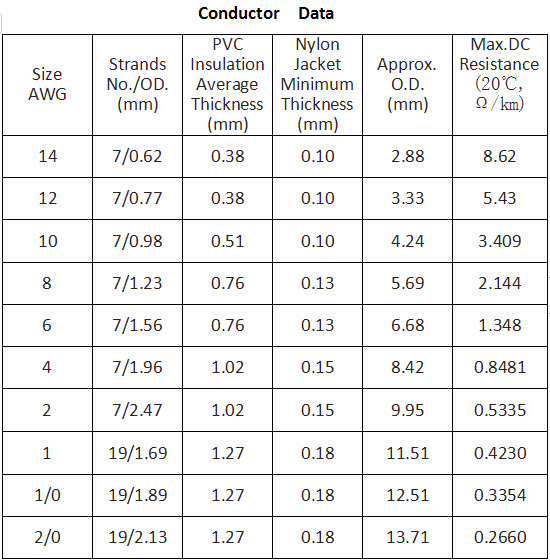

table2



table3



table4



table5
