MC CABLE UL CERTIFIED METAL CLAD POWER CABLE

Short Description:


  • Min.Order Quantity: 10000 Feet/Feet
  • Supply Ability: 10,000,000 Feet/Feet per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    123



    (1)14AWG through 1000kcmil Copper THHN/THWN-2 Insulated Singles. UL Listed. 600 Volts. Rated VW-1. Lightweight Aluminum Interlocked Armor.

    (2)6AWG through 1000kcmil Aluminum cross-linked polyethylene XLPE insulation Insulated XHHW-2 Singles. UL Listed. 600 Volts. Rated VW-1. Lightweight Aluminum Interlocked Armor. PVC jacket.

    <-Product Description->

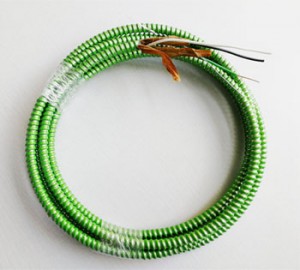

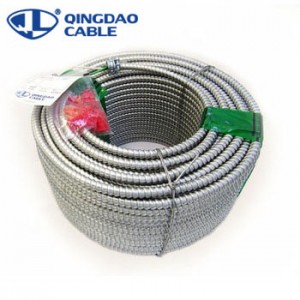

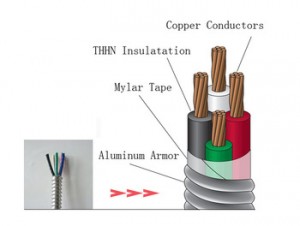

    Type MC_Copper Conductor

    14 AWG through 1000kcmil Copper THHN/THWN-2 Insulated Singles. UL Listed. 600 Volts. Rated VW-1. Lightweight Aluminum Interlocked Armor.

    mc Cu123



    Scope

    This specification covers lightweight aluminum interlock armor type MC cable with soft annealed copper solid or stranded conductor,THHN/THWN insulated singles, conforming to Standard 1569 of Underwriters Laboratories, Inc. UL file No.E313205 .

    Application

    Type MC cables are suitable for use as follows: branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings. Power, lighting, control, and signal circuits. Type THHN/THWN conductors are rated 90℃ dry / 75℃ wet. They are permitted for 600V application.

    Conductors: Soft annealed copper .

    Sizes:14AWG-1000kcmil. .

    Insulation: Flame retardant PVC.  Thickness: per UL83.

    Color coding:

    MC-Cu-Color

    Conductor jacket: Nylon. Thickness: per UL83.

    Cabling: Three or more conductors are assembled without fillers and wraped by a polyester binder tape. A marker tape is inserted under the binder tape.

    Armor: Aluminum interlock armor is applied over the assembly.

    Jacket: A flame retardant PVC jacket is optional.

    Information  on  the  marker tape or the jacket AWG or kcmil size,conductor type letters,rated voltage,the name of the manufacturer,UL file number,characteristic,manufacture date,FEET.

    Type MC Cable Data1(Copper conductor)

    MC-Cu-Data



    Type MC Cable Data2(Copper conductor)

    MC-CU-Data_2

     Packaging Information: Coils or Reel

    ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——

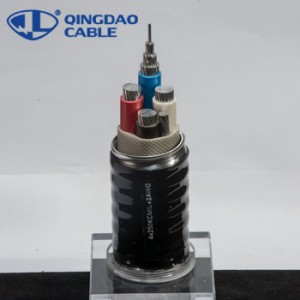

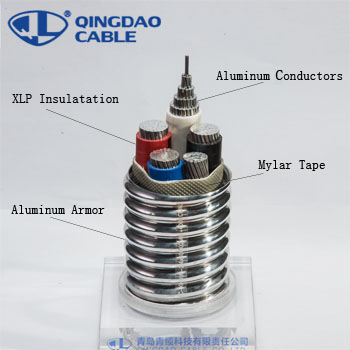

    Type MC_Aluminum Conductor

    6AWG through 1000kcmil Aluminum cross-linked polyethylene XLPE insulation Insulated XHHW-2 Singles. UL Listed. 600 Volts. Rated VW-1. Lightweight Aluminum Interlocked Armor. PVC jacket

    000



    Scope

    This specification covers lightweight aluminum interlock armor type MC cable with Compact strand 8000 series aluminum alloy conductors,cross-linked polyethylene XLPE insulation Insulated XHHW-2 Singles, conforming to Standard 1569 of Underwriters Laboratories, Inc. UL file No.E313205 .

    Application

    Type MC cables Suitable for use in branch, feeder and service power distribution under high ambient temperature in commercial, industrial, institutional, casinos and multi-residential buildings; for power, lighting, control and signal circuits; in concealed or exposed installations; in environmental air-handling spaces per NEC 300.22; in places of assembly per NEC 518.4 and theaters per NEC 520.5; in aerial applications when attached to a messenger; for installation in cable tray and approved raceways; under raised floors for IT equipment per NEC 645.5(D) and 645.5(D)(2); Class I Div 2, Class II Div 2, Class III Div 1 hazardous locations.

    Conductors: Compact strand 8000 series aluminum alloy conductors

    Sizes:6AWG-1000kcmil.

    Insulation: Color coded cross-linked polyethylene XLPE insulation. The cable ground is either bare or has green insulation. Thickness: per UL44.

    Color coding:

    MC-Al-Color

    Cabling: Three or more conductors are assembled without fillers and wraped by a polyester binder tape. A marker tape is inserted under the binder tape.

    Armor: Aluminum interlock armor is applied over the assembly.

    Jacket: An overall black polyvinyl chloride PVC jacket, which is heat, moisture and sunlight resistant.

    Information  on  the  marker tape or the jacket AWG or kcmil size, conductor type letters, rated voltage, the name of the manufacturer, UL file number, characteristic, manufacture date, FEET.

    ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——  ——



    Type Aluminum Conductor–Jacketed MC Cable Data

    MC-Al-Data

    Packaging Information: Coils or Reel

    <-Certifications->

    MC UL

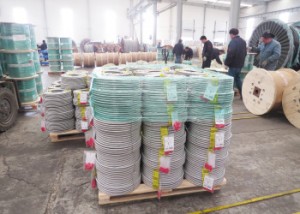

    <-Packaging & Shipping->

    mc001

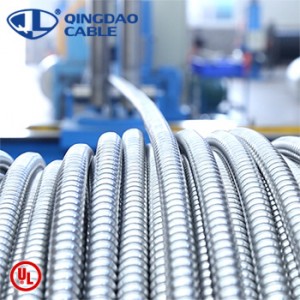

    <-Our Factory->
