THHN wire UL listed 83 14-4/0 AWG 250-1000kcmil THWN/THW-2

Short Description:


  • Min.Order Quantity: 10000 Feet/Feet
  • Supply Ability: 10,000,000 Feet/Feet per Month
  • Port: Qingdao
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    We are a large cable factory with a long history of 70 years. We produce hundreds of models including UL,CSA,VDE,SAE,GB Standard and so on. If you have specific requirements, we can also provide customized services. Please let us know your demand and we will provide you with high quality products and competitive prices!

    <-Product Description->

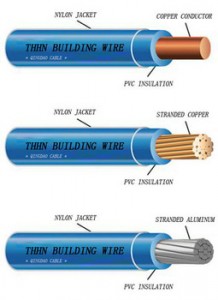

    0004

    Copper THHN

    600 Volts. Copper Conductor. Thermoplastic Insulation/Nylon Sheath. Heat, Moisture, Oil, and Gasoline Resistant II. All Sizes Rated Both THHN and either THWN(size 14,12 and 10 AWG) or THWN-2(size 8AWG and larger).

    Applications

    Type THHN/THWN/THWN-2 cable with soft annealed copper solid or stranded conductor,PVC insulation and nylon jacket , conforming to Standard 83 of Underwriters Laboratories, Inc. They meet the requirements of the VW-1 and CT flame test, gasoline and oil resistant, sunlight resistant. UL file No. E210924.

    Type THHN/THWN/THWN-2 are primarily used in conduit and cable trays for services ,feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code.

    » THHN – Dry locations not to exceed 90° C.

    » THWN – Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil.

    » THWN-2 -Wet or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil.

    Standards&References

    Type THHN meet or exceed the following standards:

    UL standard 83, CUL CSA C22.2 No. 75

    1/0 & larger are rated for CT use Requirements of the National Electrical Code NEMA WC-70

    ASTM -B3, B8,

    Conductors:  Soft annealed copper,bare or tinned.   Sizes 14AWG-1000kcmil: Solid or stranded.

    Insulation: Flame retardant PVC.  Thickness:per UL83.

    Jacket: Nylon.  Thickness:per UL83.

    Information  on  the  cable:  AWG or kcmil size,type letters,rated voltage,the name of the manufacturer,UL file number,characteristic,manufacture date, FEET.

    THHN-Cu

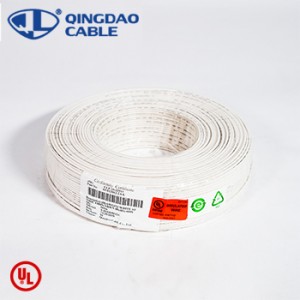

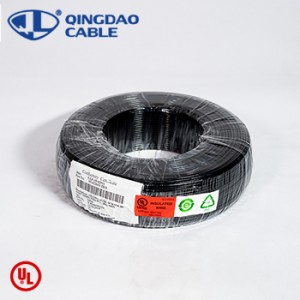

    Packaging information:  Coils or Reel

    Standard stock colors include:  black, red, blue, white, brown, orange, yellow, gray, purple and green.

     —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— ——



    AL THHN/THWN2/T90 600V PVC/Nylon Insulation

    Al-THHN

    * Ampacities for not more than three conductors in raceway, based on ambient temperature of 30°C per Table 310-15 of the 2011 NEC

    Application: THHN / THWN-2 / T90 cables are primarily use for power distribution. The cables may be used in wet or dry locations, with ambient temperatures not exceeding 90°C. Voltage rating for cable is 600V.

    Conductors: Compact soft drawn bare 8000 series aluminum, with Class B stranding

    Insulation:  Low coefficient of friction abrasion, heat, sunlight, and moisture resistant polyvinyl chloride PVC

    Jacket: A clear abrasion, heat, sunlight, moisture resistant and low coefficient of friction nylon jacket.

    Standard stock colors include: black, red, blue, white, brown, orange, yellow, gray,purple and green.

    Standards: meet or exceed the following standards:

    UL standard 83, CUL CSA C22.2 No. 75

    1/0 & larger are rated for CT use Requirements of the National Electrical Code NEMA WC-70

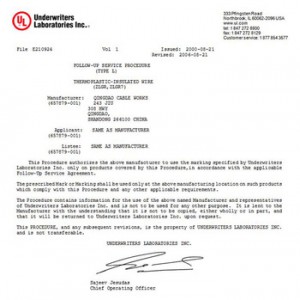

    <-Certifications->

    thhn al

    <-Packaging & shipping->

    IMG_5993

    <-Our Factory->

    Founded in 1950, Qingdao Cable Co., Ltd.,former Qingdao Cable Works, has the experience of more than 60 years in the production of wires and cables, with the registered trademark of “Qing Kai”,”Qing Lan”.

    .jpg

    As the Enterprise of High and New Technology of China, Qingdao Cable Co., Ltd. Has been manufacturing high quality products with the advanced equipments and complete inspection instruments. The company has been awarded the certificate of approval of ISO9001, ISO14001, OHSAS18000, and has been certified by the multinational companies of GE, Motorola, etc. Several kinds of products are listed by American UL and Chinese CCC. The company can produce and develop products in accordance with such standards as GB, IEC, UL, JS, VDE, SAE, and the purchasers’ requirement as well.

    <-Customers & Projects->

    _20190116152237_20190114422372
