professional factory for Photovoltaic (Pv) Solar Power - Type XHHW/XHHW-2 cable soft drawn bare Aluminum or annealed Copper Conductor 600V XLPE Insulation/insulated – Cable

Copper XHHW-2 600V XLPE Insulation

Scope:

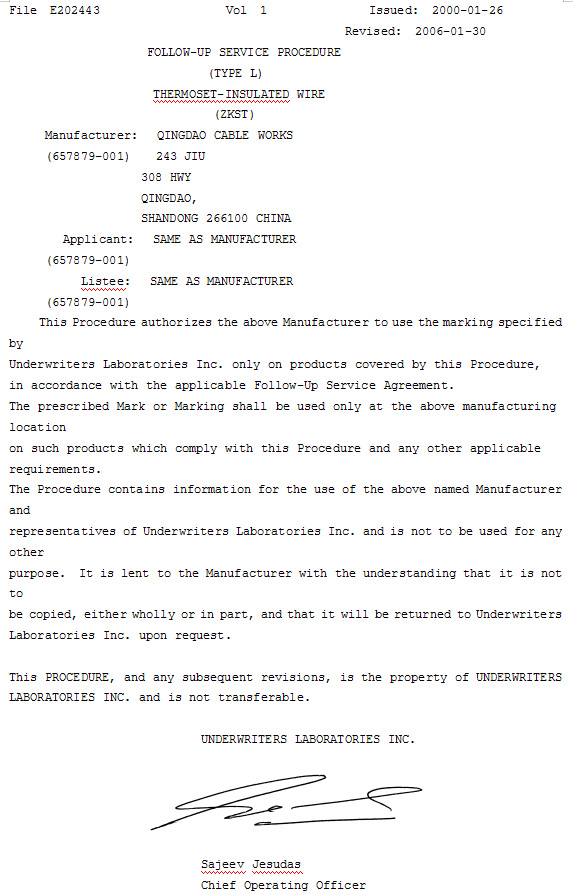

This specification covers type XHHW/XHHW-2 cable with soft annealed copper solid or stranded conductor,heat and moisture resistant XLPE insulation , conforming to Standard 44 of Underwriters Laboratories, Inc. UL file No. E202443.

Application:

Type XHHW/XHHW-2 is suitable for various commercial and industrial applications. These cables may be installed in wet or dry locations , indoors or outdoors ,in raceways ,underground ducts. XHHW is rated at a conductor temperature of 75℃ wet and 90℃ dry, XHHW-2 is rated at a conductor temperature of 90℃ wet or dry. They are permitted for 600V  application.

Construction

Conductors: Soft annealed copper, bare or tinned.  Sizes 14AWG-2000kcmil: Solid or stranded.

Insulation:  XLPE.  Thickness: per UL44. A Polyester film as a separator between the conductor and the insulation is optional.

Information  on  the  cable:  AWG or kcmil size, type letters, rated voltage, the name of the manufacturer, UL file number, characteristic, manufacture date, FEET.

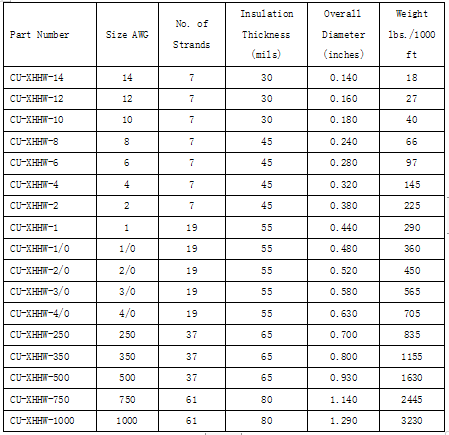

Type XHHW-2 Cable Data

—— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— —— ——

Aluminum XHHW-2 600V XLPE Insulation

Scope:

This specification covers type XHHW/XHHW-2 cable with soft drawn bare 8000 series aluminum Conductor,heat and moisture resistant XLPE insulation , conforming to Standard 44 of Underwriters Laboratories, Inc. UL file No. E202443.

Application:

Type XHHW/XHHW-2 is suitable for various commercial and industrial applications. These cables may be installed in wet or dry locations , indoors or outdoors ,in raceways ,underground ducts. XHHW is rated at a conductor temperature of 75℃ wet and 90℃ dry, XHHW-2 is rated at a conductor temperature of 90℃ wet or dry. They are permitted for 600V  application.

Construction

Conductors:  Compact soft drawn bare 8000 series aluminum, with Class B stranding per ASTM.

Sizes 14AWG-2000kcmil: Solid or stranded.

Insulation:  XLPE.  Thickness: per UL44.

A Polyester film as a separator between the conductor and the insulation is optional.

Information  on  the  cable:   AWG or kcmil size, type letters, rated voltage, the name of the manufacturer, UL file number, characteristic, manufacture date, FEET.

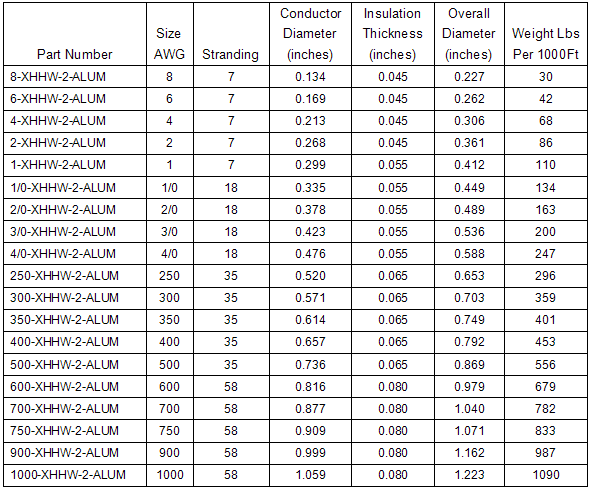

Type XHHW-2 Cable Data

Packaging Information:  Coils or Reel

(1) When can I get a response?

We will reply to your inquiry as soon as possible, usually within 6 hours. You can call us directly if it is urgent.

(2). How can I get a sample?

you can require for samples after price confirmation. Samples in stock are free of charge, but the freight charge should be paid.

(3). What about the lead time for mass production?

It depends on the order quantity, the distance of transportation and so on. We suggest that you start inquiry two months before the date you would like to get the products at your country.

Please contact us for details about lead time and other issues.

We look forward to sincere cooperation with you!
